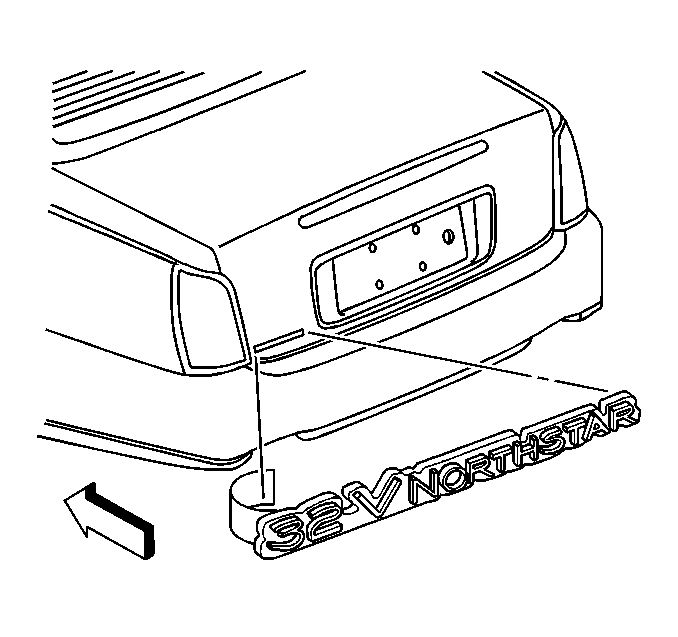

Replacement Procedure (32 V Northstar)
- Wash the affected panel (1) with a soap and water mixture.
- Dry the affected panel using a clean cloth.
- Remove all traces of adhesive from the panel and from the back
of the emblem/nameplate using 3M General Purpose Adhesive Cleaner 08984 or
equivalent.
- Wipe the panel (1) with a clean cloth and an alcohol and water
mixture.

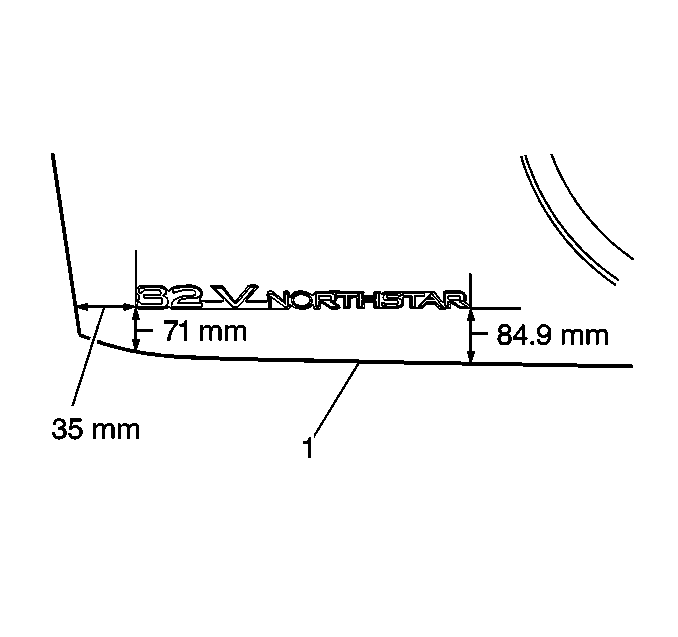

- Using the dimensions, mark the proper
position of the emblem/nameplate with a length of masking tape or a magnetic
strip.
- If the body is below 21°C (70°F), warm the affected panel
with a heat lamp or a heat gun while proceeding with the following step.
- If necessary, apply a double-coated acrylic foam tape such as
3M Super Automotive Attachment Tape (3M 06380 which has a white backing,
3M 06377 which has a black backing, or 3M 06382 which has a
gray backing) or equivalent to the emblem/nameplate.
- Align the emblem/nameplate with the panel.
- Press the emblem/nameplate firmly in place to ensure proper adhesion.
Replacement Procedure (Cadillac)
- Wash the affected panel (1) with a soap and water mixture.
- Dry the affected panel using a clean cloth.
- Remove all traces of adhesive from the panel and from the back
of the emblem/nameplate using 3M General Purpose Adhesive Cleaner 08984 or
equivalent.
- Wipe the panel (1) with a clean cloth and an alcohol and water
mixture.
- Using the dimensions, mark the proper
position of the emblem/nameplate with a length of masking tape or a magnetic
strip.
- If the body is below 21°C (70°F), warm the affected panel
with a heat lamp or a heat gun while proceeding with the following step.
- If necessary, apply a double-coated acrylic foam tape such as
3M Super Automotive Attachment Tape (3M 06380 which has a white backing,
3M 06377 which has a black backing, or 3M 06382 which has a
gray backing) or equivalent to the emblem/nameplate.
- Align the emblem/nameplate with the panel.
- Press the emblem/nameplate firmly in place to ensure proper adhesion.
Replacement Procedure (Deville)
- Wash the affected panel (1) with a soap and water mixture.
- Dry the affected panel using a clean cloth.
- Remove all traces of adhesive from the panel and from the back
of the emblem/nameplate using 3M General Purpose Adhesive Cleaner 08984 or
equivalent.
- Wipe the panel (1) with a clean cloth and an alcohol and water
mixture.

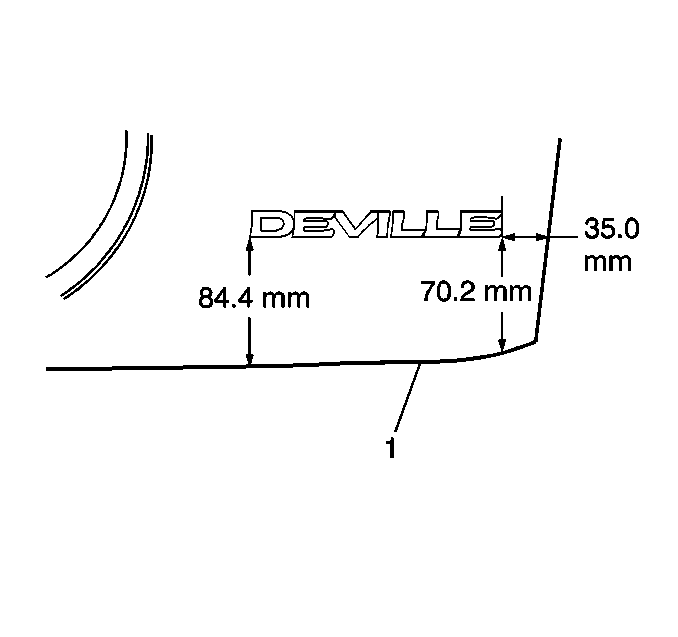

- Using the dimensions, mark the proper
position of the emblem/nameplate with a length of masking tape or a magnetic
strip.
- If the body is below 21°C (70°F), warm the affected panel
with a heat lamp or a heat gun while proceeding with the following step.
- If necessary, apply a double-coated acrylic foam tape such as
3M Super Automotive Attachment Tape (3M 06380 which has a white backing,
3M 06377 which has a black backing, or 3M 06382 which has a
gray backing) or equivalent to the emblem/nameplate.
- Align the emblem/nameplate with the panel.
- Press the emblem/nameplate firmly in place to ensure proper adhesion.

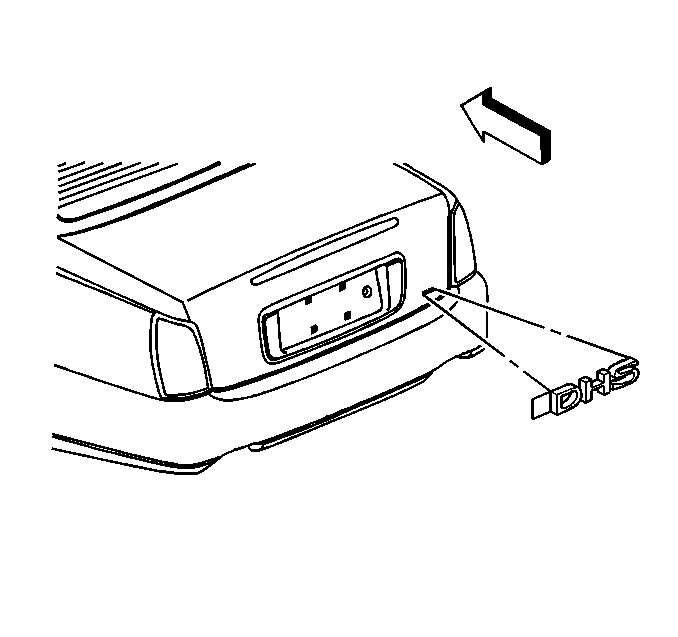

Replacement Procedure (DHS)
- Wash the affected panel (1) with a soap and water mixture.
- Dry the affected panel using a clean cloth.
- Remove all traces of adhesive from the panel and from the back
of the emblem/nameplate using 3M General Purpose Adhesive Cleaner 08984 or
equivalent.
- Wipe the (1) panel with a clean cloth and an alcohol and water
mixture.
- Using the dimensions, mark the proper
position of the emblem/nameplate with a length of masking tape or a magnetic
strip.
- If the body is below 21°C (70°F), warm the affected panel
with a heat lamp or a heat gun while proceeding with the following step.
- If necessary, apply a double-coated acrylic foam tape such as
3M Super Automotive Attachment Tape (3M 06380 which has a white backing,
3M 06377 which has a black backing, or 3M 06382 which has a
gray backing) or equivalent to the emblem/nameplate.
- Align the emblem/nameplate with the panel.
- Press the emblem/nameplate firmly in place to ensure proper adhesion.

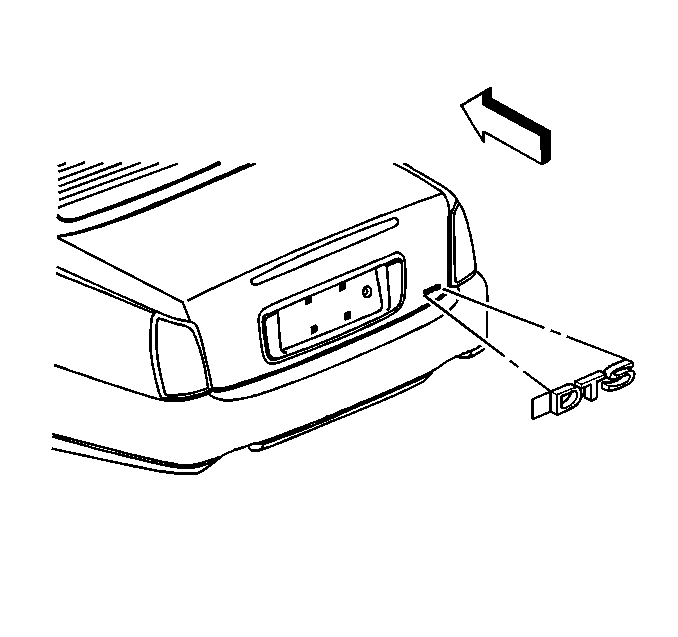

Replacement Procedure (DTS)
- Wash the affected panel (1) with a soap and water mixture.
- Dry the affected panel using a clean cloth.
- Remove all traces of adhesive from the panel and from the back
of the emblem/nameplate using 3M General Purpose Adhesive Cleaner 08984 or
equivalent.
- Wipe the panel (1) with a clean cloth and an alcohol
and water mixture.

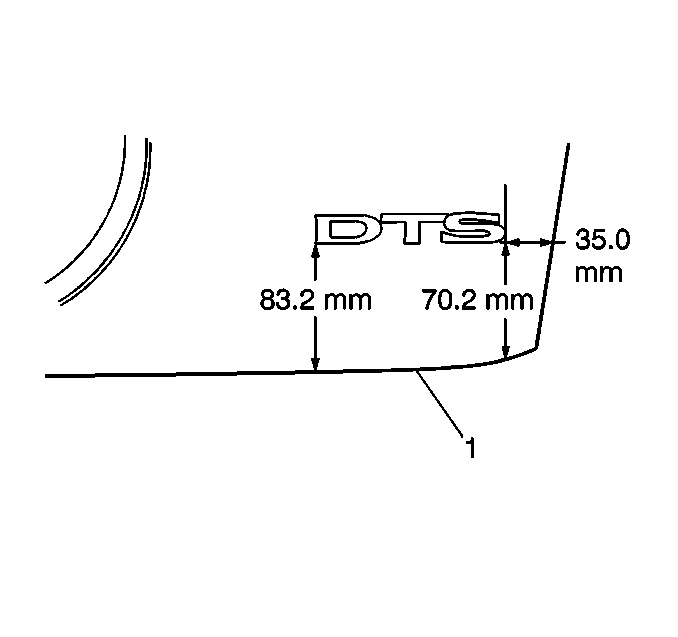

- Using the dimensions, mark the proper
position of the emblem/nameplate with a length of masking tape or a magnetic
strip.
- If the body is below 21°C (70°F), warm the affected panel
with a heat lamp or a heat gun while proceeding with the following step.
- If necessary, apply a double-coated acrylic foam tape such as
3M Super Automotive Attachment Tape (3M 06380 which has a white backing,
3M 06377 which has a black backing, or 3M 06382 which has a
gray backing) or equivalent to the emblem/nameplate.
- Align the emblem/nameplate with the panel.
- Press the emblem/nameplate firmly in place to ensure proper adhesion.
