Driver Seat Schematics. Cadillac SRX 2004

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2004 🢒 SRX 🢒 Accessories 🢒 Entertainment 🢒 Driver Seat Schematics

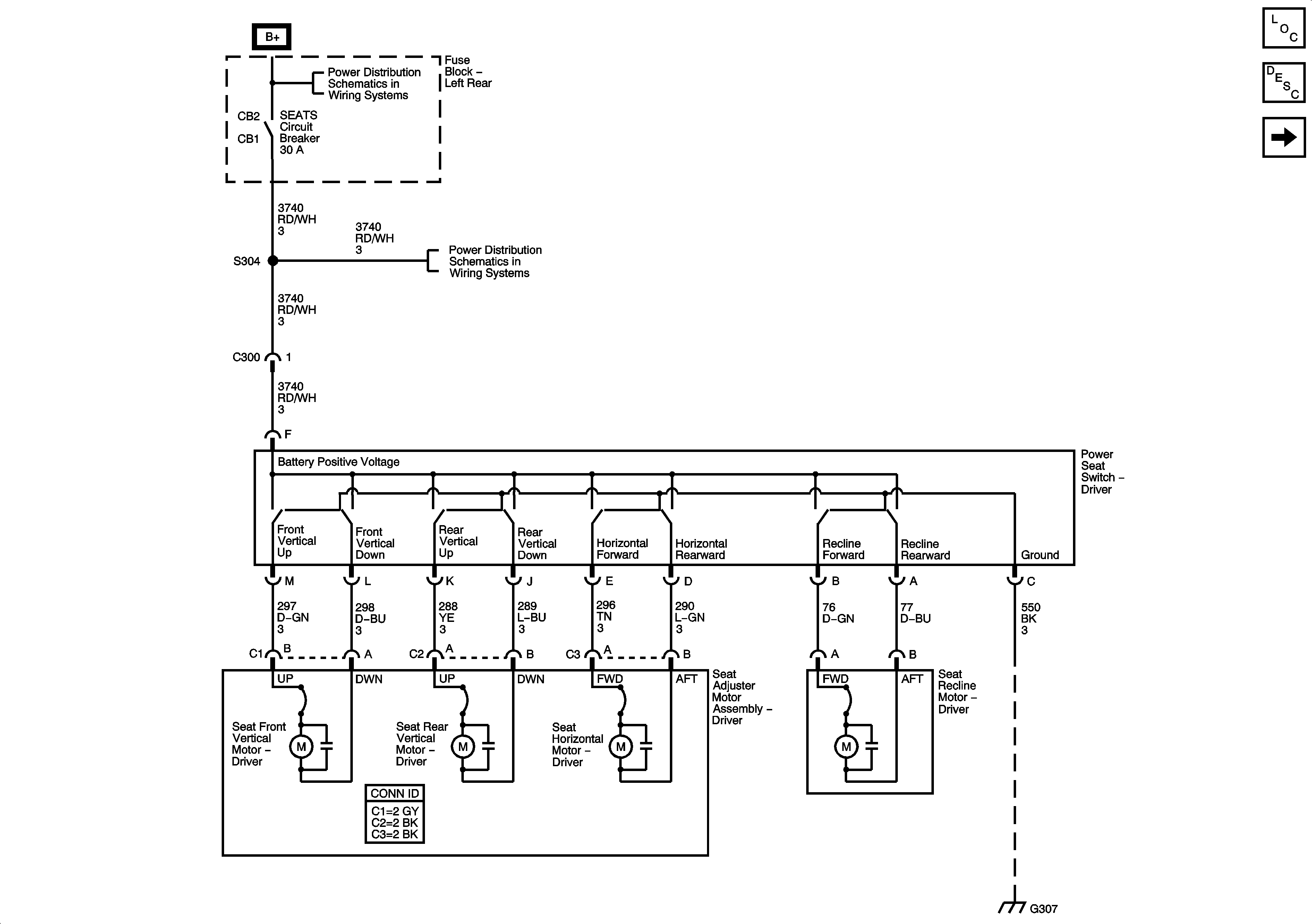

Figure 1:	Power Seat (w/o A45) Master Electrical Component List Power Seats System Description and Operation Front Seat Heated Seats (KA1) Fuse Block - Left Rear B+ Bus FFSM, FFS SW. and THEFT Fuses and SEAT Circuit Breaker G307

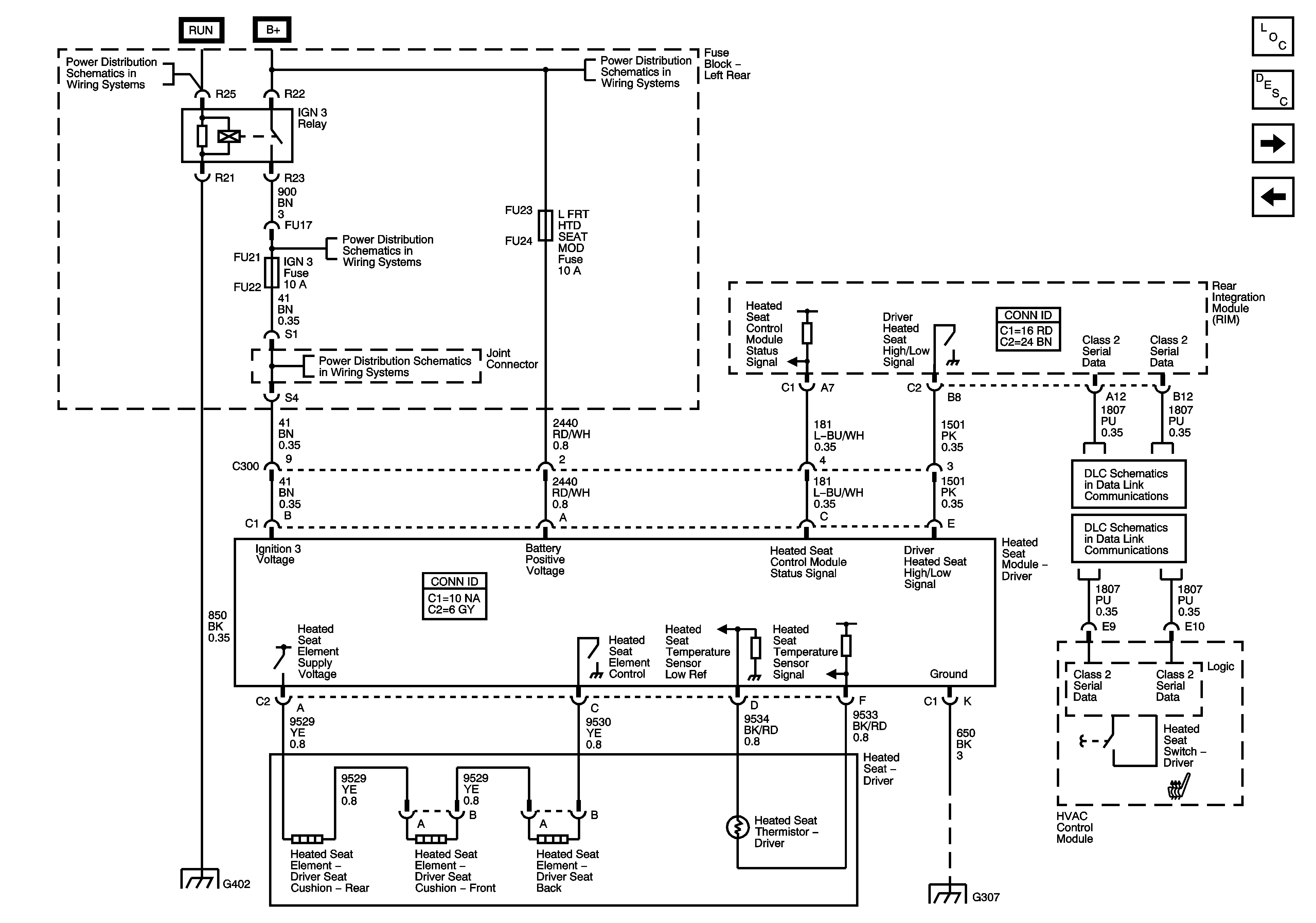

Figure 2:	Heated Seat (KA1) Master Electrical Component List Heated Seats Description and Operation Memory Seat Module Power, Ground, and Seat Adjuster Switches (A45) Power Seat (w/o A45) IGN SW Fuse and Ignition Switch - 1 of 2 Fuse Block - Left Rear B+ Bus AIRBAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, AND IGN 3 Fuses AIRBAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, AND IGN 3 Fuses Class 2 Serial Data - 2 of 2 Class 2 Serial Data - 1 of 2 G402 - 1 of 2 G307

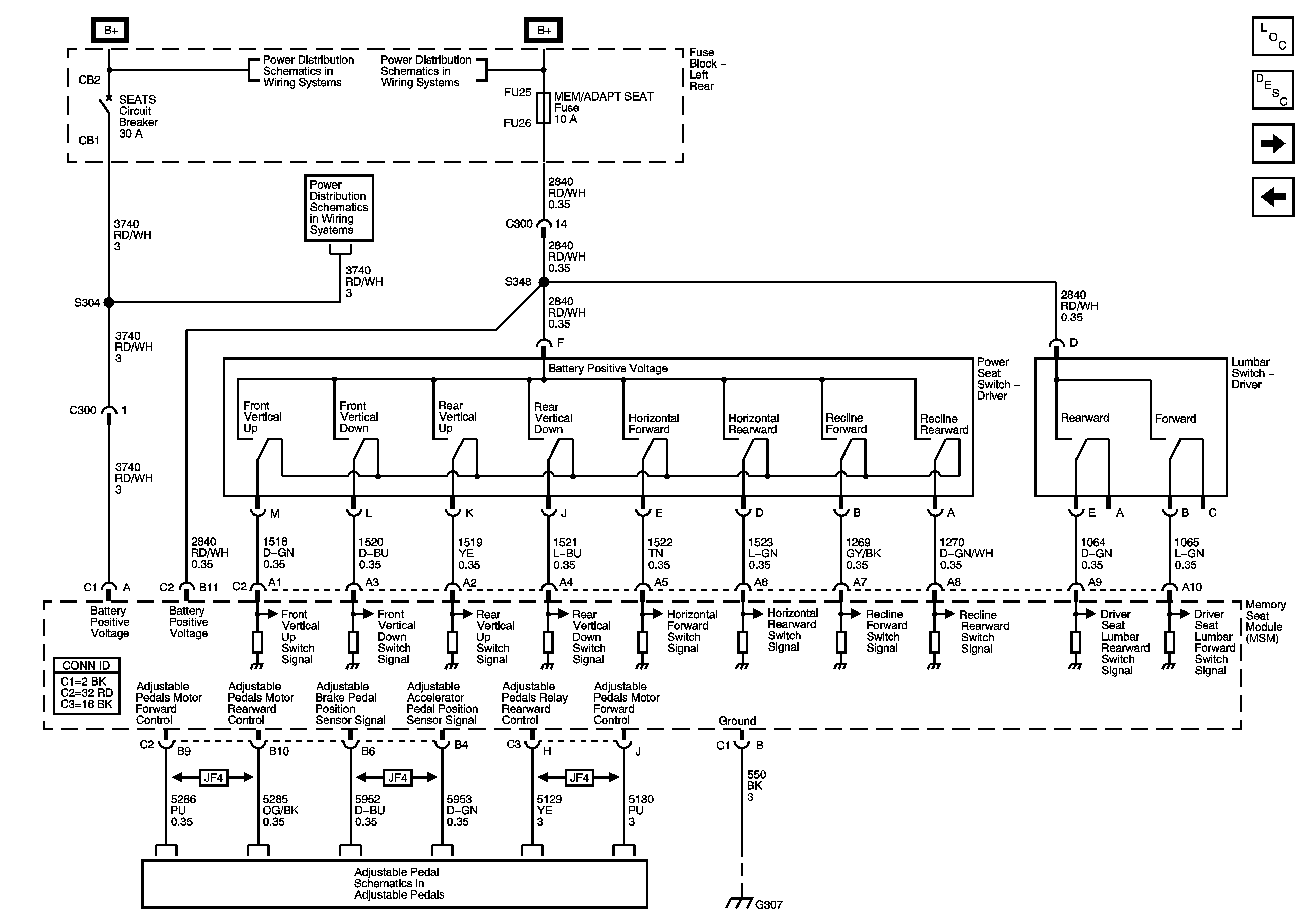

Figure 3:	Memory Seat Module Power, Ground, and Seat Adjuster Switches (A45) Master Electrical Component List Memory Seats Description and Operation Memory Seat Controls (A45) Heated Seats (KA1) Fuse Block - Left Rear B+ Bus Fuse Block - Left Rear B+ Bus FFSM, FFS SW. and THEFT Fuses and SEAT Circuit Breaker Adjustable Pedals Schematic G307
Figure 4:	Memory Seat Controls (A45) Master Electrical Component List Memory Seats Description and Operation Memory Seat Position Sensors and Motors (A45) Memory Seat Module Power, Ground, and Seat Adjuster Switches (A45) Dimming Lamps - 2 of 2 DDM Power, Ground and Serial Data Class 2 Serial Data - 1 of 2
Figure 5:	Memory Seat Position Sensors and Motors (A45) Master Electrical Component List Memory Seats Description and Operation Memory Seat Controls (A45) Adjustable Pedals Schematic
