Body Control System Schematics. Cadillac SRX 2004

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2004 🢒 SRX 🢒 Accessories 🢒 Entertainment 🢒 Body Control System Schematics

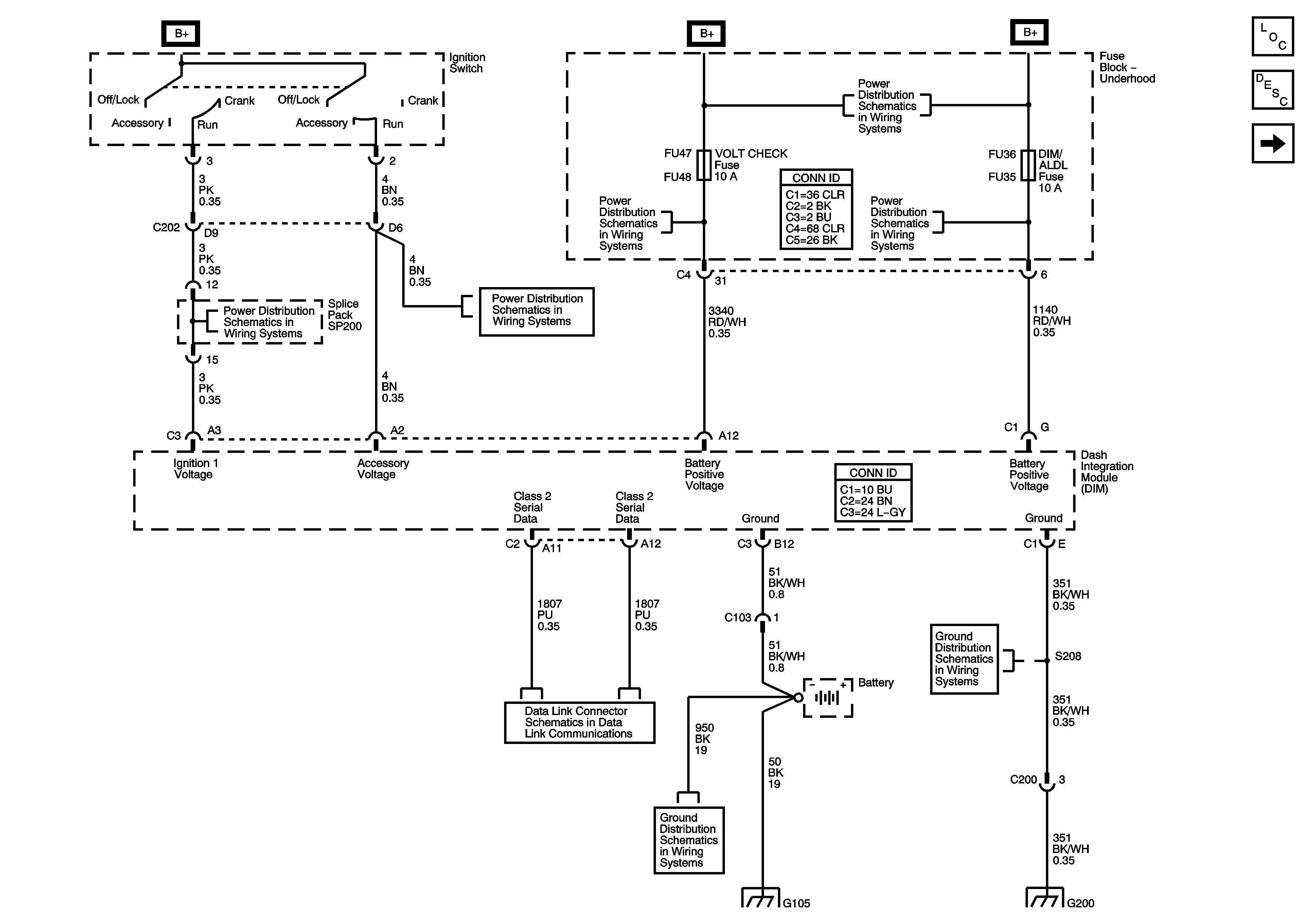

Figure 1:	DIM Power, Ground, and Seial Data Master Electrical Component List Body Control System Description and Operation DIM Inputs and Outputs - 1 of 2 RIM and THEFT Fuses and Ignition Switch - 2 of 2 RIM and THEFT Fuses and Ignition Switch - 2 of 2 CCP (B+), DIM/ALDL, EBCM (B+), ECM/TCM, FLASHER, and VOLT CHECK Fuses Fuse Block - Underhood B+ Bus Schematic CCP (B+), DIM/ALDL, EBCM (B+), ECM/TCM, FLASHER, and VOLT CHECK Fuses Class 2 Serial Data - 1 of 2 G200 G102, G105, G107, G108, G109 and G110 G102, G105, G107, G108, G109 and G110 G200

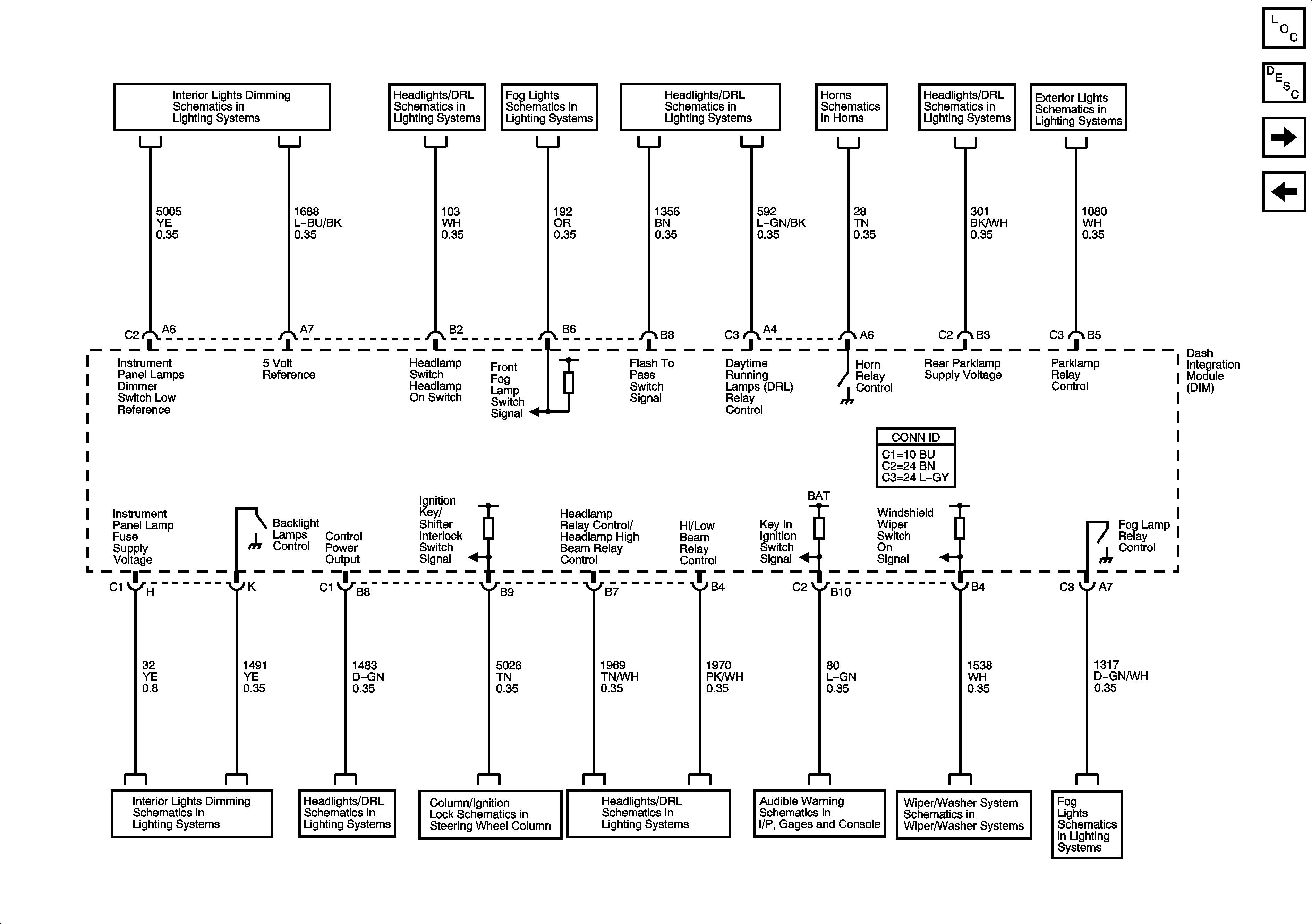

Figure 2:	DIM Inputs and Outputs - 1 of 2 Master Electrical Component List Body Control System Description and Operation DIM Inputs and Outputs - 2 of 2 DIM Power, Ground and Serial Data Courtesy/Reading Lamps Headlamp Controls Front Fog Lamps Headlamp Controls Horns Schematic Headlamp Controls Park Lamp Relay, Switch and Instrument Cluster (Dom, Exp) Schematic Interior Lights Dimming Controls Headlamp Controls Ignition Lock Schematic Headlamp Controls Audible Warnings Front Wiper/Washer Controls Front Fog Lamps

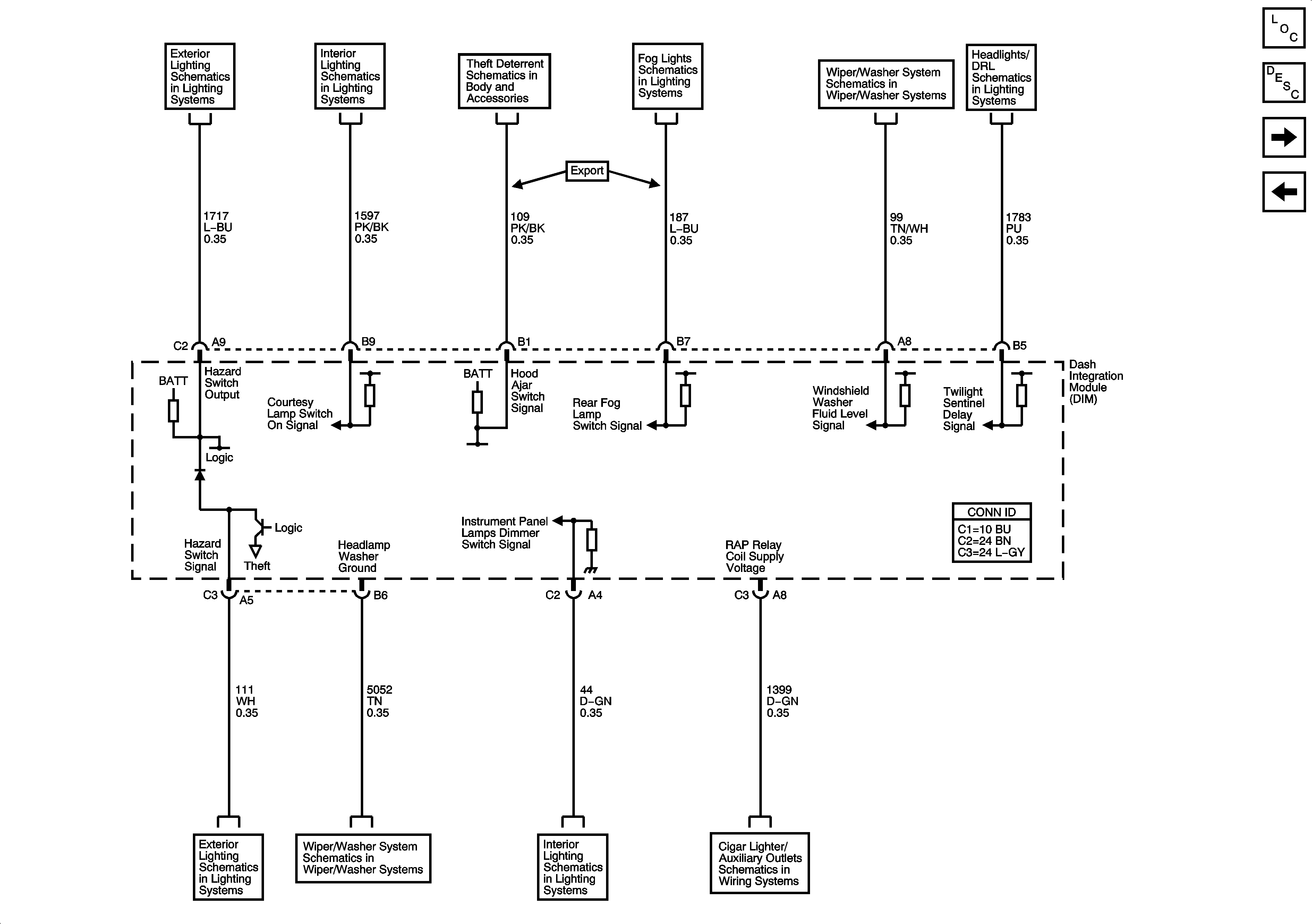

Figure 3:	DIM Inputs and Outputs - 2 of 2 Master Electrical Component List Body Control System Description and Operation RIM Power, Ground and Serial Data DIM Inputs and Outputs - 1 of 2 Turn/Hazard Flasher Module Schematic Courtesy/Reading Lamps Content Theft Deterrent (CTD) Front Fog Lamps Front Washer (CE4) Headlamp Controls Turn/Hazard Flasher Module Schematic Front Washer (CE4) Courtesy/Reading Lamps Cigar Lighter/Auxiliary Outlets Schematics

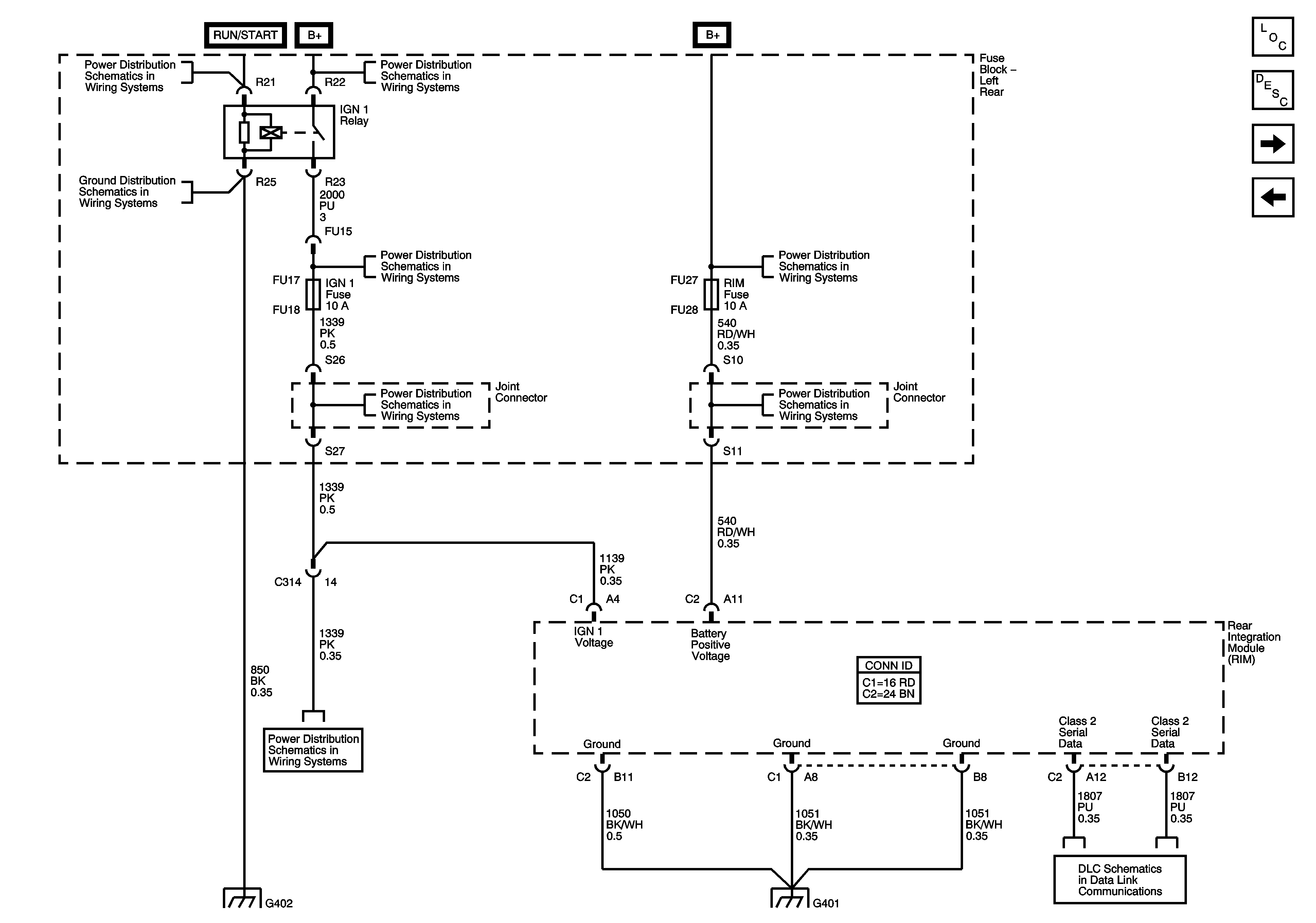

Figure 4:	RIM Power, Ground, and Serial Data Master Electrical Component List Body Control System Description and Operation Rim Inputs and Outputs DIM Inputs and Outputs - 2 of 2 RIM and THEFT Fuses and Ignition Switch - 2 of 2 Fuse Block - Left Rear B+ Bus G402 - 1 of 2 AIRBAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, AND IGN 3 Fuses Fuse Block - Left Rear B+ Bus AIRBAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, AND IGN 3 Fuses POWER SOUNDER, RIM, RT FRT DR MOD, SUSPNTN, and VICS/RAP Fuses AIRBAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, AND IGN 3 Fuses G402 - 1 of 2 G401 - 1 of 2 Class 2 Serial Data - 2 of 2

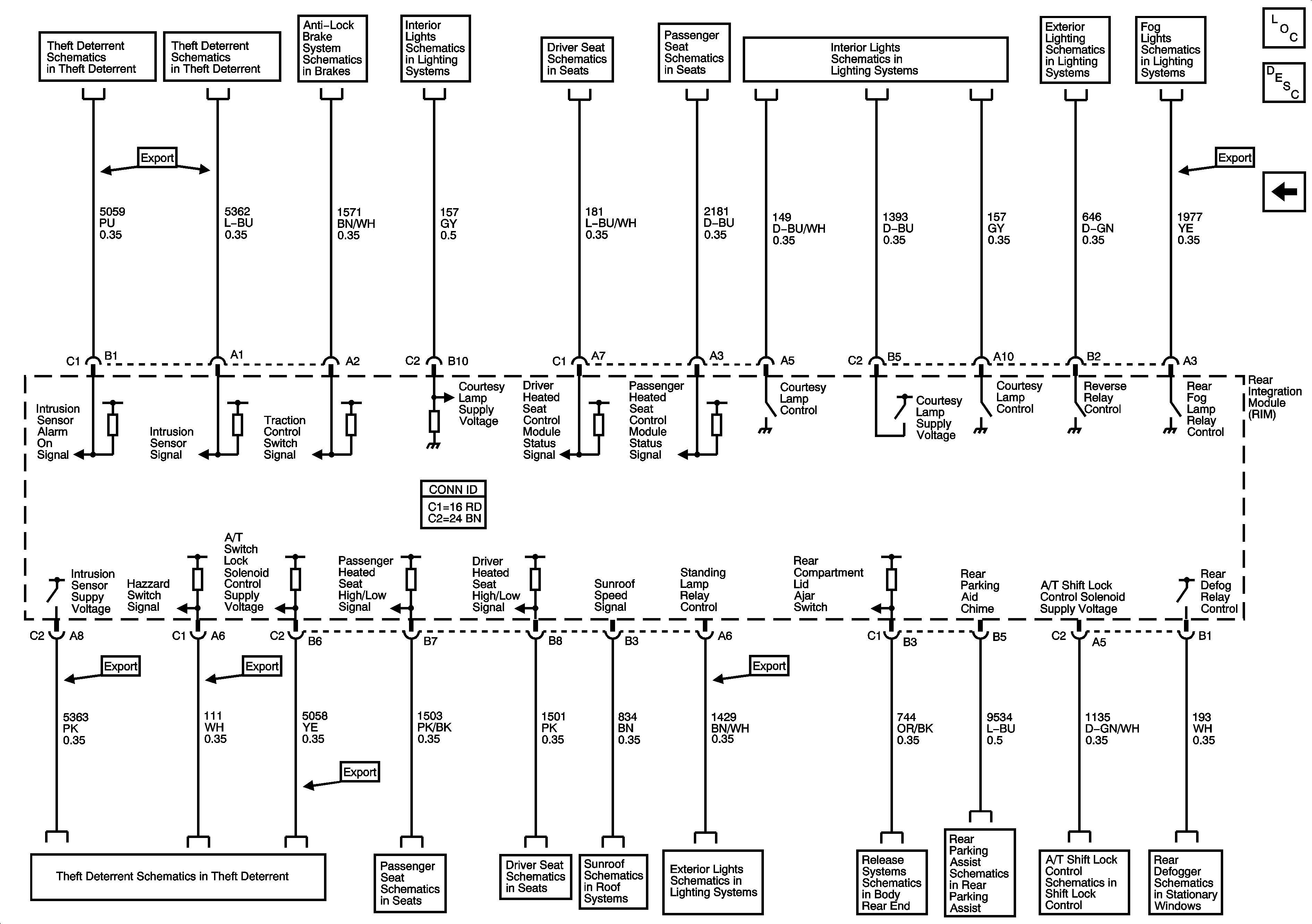

Figure 5:	RIM Inputs and Outputs Master Electrical Component List Body Control System Description and Operation RIM Power, Ground and Serial Data Content Theft Deterrent (CTD) Sensors and Sirens (UA2) Content Theft Deterrent (CTD) Sensors and Sirens (UA2) Indicators, Traction Control, and Brake Pedal Position Courtesy/Reading Lamps Heated Seats (KA1) Heated Seat Courtesy Lamps Backup Lamps (Domestic, Export) Schematic Rear Fog Lamps Content Theft Deterrent (CTD) Sensors and Sirens (UA2) Heated Seat Heated Seats (KA1) Sunroof and Front Sunshade License, Park and Side Marker Lamps (Export) Schematic Liftgate Ajar Schematic Rear Parking Assist Schematic Shift Lock Control Schematic Defogger Schematic
