Front Side Door Trim Panel Replacement for Buick Regal 1998

Tools Required

J 38778 Door Trim Pad and Garnish Remover

1. Remove the power window switch (3) and remote rearview mirror switch. Refer to Front Side Door Window Switch Replacement .



2. Remove the cover in the armrest pull cup.
3. Remove the armrest pull cup screws.

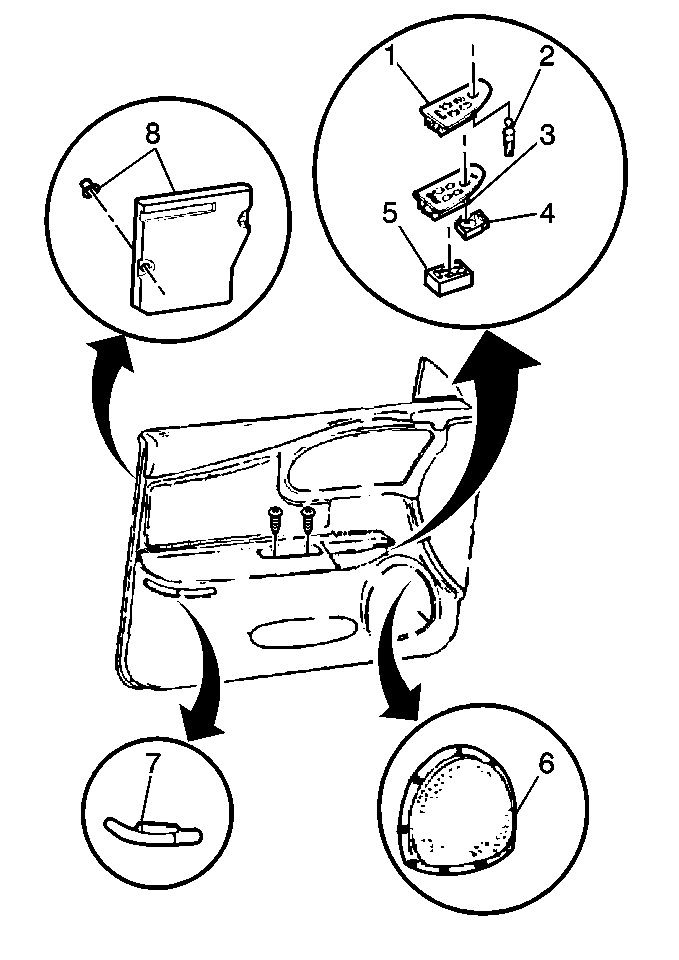

4. Starting at the door bottom, use the J 38778 to release the door trim panel retainers.
5. Lift the trim panel up to release the top edge and remove it from the door.

Important: Before installing the door trim panel to the door, discard the old trim panel retainers. Use new trim panel retainers in order to properly secure the trim panel to the door.

1. Install the new trim panel retainers to the trim panel.
2. Connect the electrical connectors as needed.
3. Position the top of the trim panel at the window opening and press down.
4. Align the fasteners into the holes in the door metal.
5. Press on the trim panel in order to secure the fasteners into the door.




Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

6. Install the armrest pull cup screws.

Tighten
Tighten the armrest pull cup screws to 2 N·m (18 lb in).

7. Install the cover over the pull cup screws.
8. Install the power window switch. Refer to Front Side Door Window Switch Replacement .
