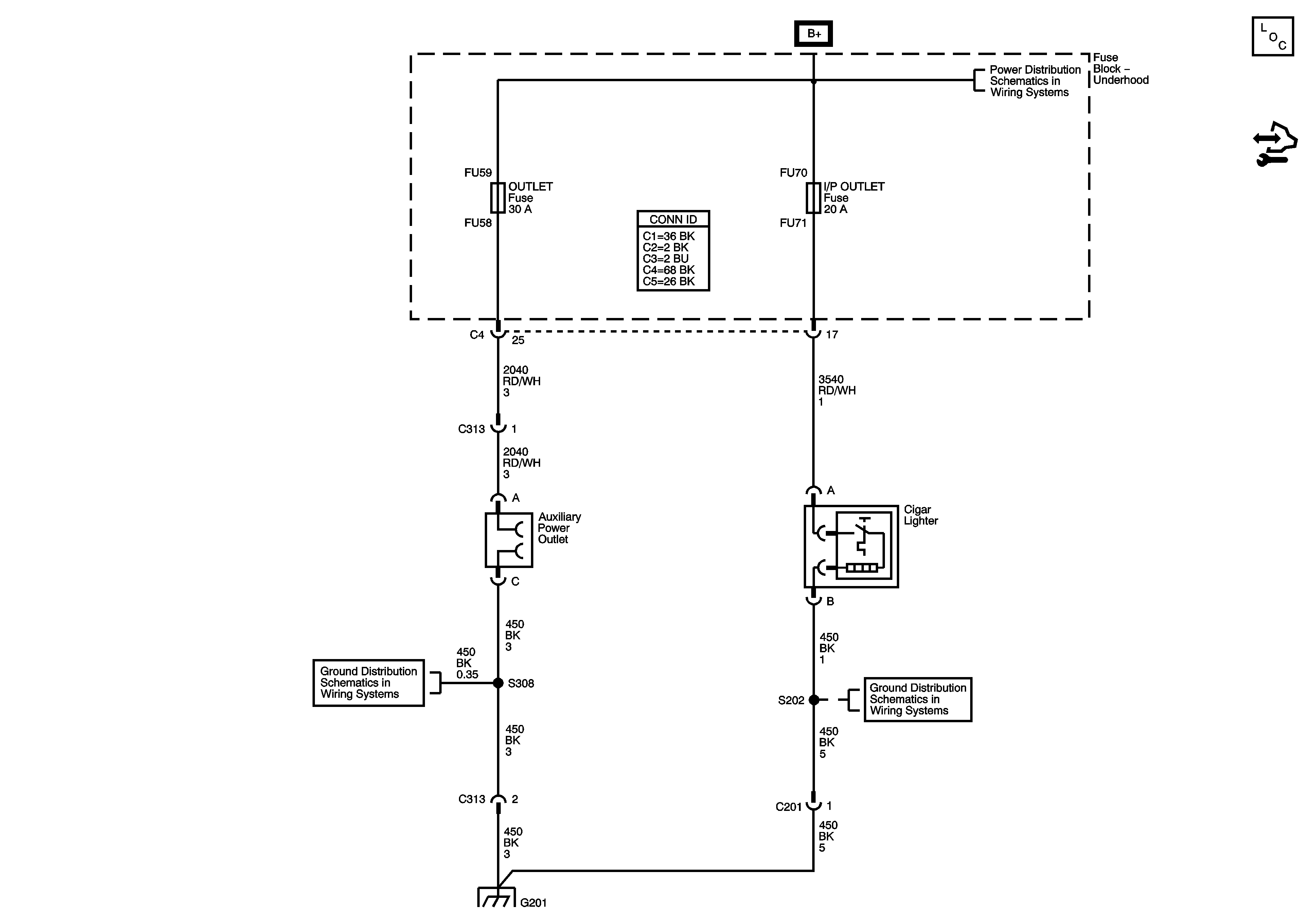

Cigar Lighter/Power Outlet Schematics for Cadillac CTS 2006

Object Number: 1589424 Size: FS

Master Electrical Component List
Control Module References
Underhood Fuse Block - HEADLAMP Relays/Fuses, ACCESSORY Relay, I/P OUTLET, OUTLET, WPR MOD, WPR SW, and ELEC PRNDL Fuses
G201
G201
G201
