Park Brake Lubrication for Chevrolet Chevy Suburban 4WD - RHD 1999

Notice: Do not lubricate the parking brake cables. Lubrication destroys the plastic coating on the parking brake cables.

If the parking brake lever does not fully return, lubricate the following parts using GM P/N 1052497:

   •

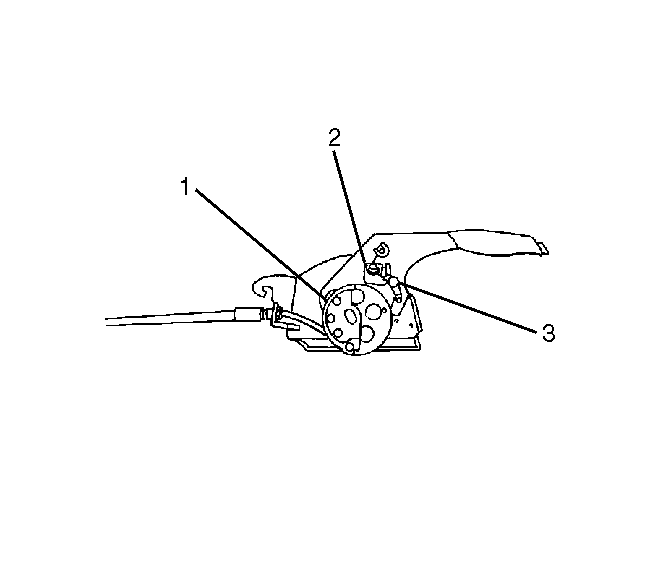

Object Number: 293479 Size: SH
  • The parking brake lever pulley (1)
    •    •
  • The adjust pawl (2)
    •    •
  • The adjust pawl pin (3)
