Engine Controls Schematics. Chevrolet Corvette 2006

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2006 🢒 Corvette 🢒 Vehicle Control Systems 🢒 Vehicle DTC Information 🢒 Engine Controls Schematics

Figure 1:	DLC, Ground, MIL and Power Master Electrical Component List Engine Control Module Description Control Module References 5 Volt Reference Bussing OBD II Symbol Description Notice BCM Fuses: CLSTR/HUD, CRUISE SW, CTSY/LAMP, DR LCK, EXH MOD, HVAC/PWR SND, ISRVM/HVAC and RUN CRNK Relay Fuse Block - Underhood ABS, AMP, BATT2, COOLFAN, ECM/TCM/EASY KEY, HORN/ALT SENSE, HVAC, and MRRTD Fuses Fuse Block - Underhood A/C COMP, EMISSION, EVEN INJ, MAN TRAN SOL, 02 SEN, ODD INJ, and PT INPUT/ETC Fuses, A/C COMP and POWERTRAIN IGN1 Relays BCM Fuses: ECM, HTD SEAT/WPR RELAYS, GM LAN RUN/CRNK, and SDM/AOS AIRBAG, Fuse Block - Underhood ABS/MRRTD and TCM/TRANS Fuses and WIPER RUN/ACC Relay Japan (UZD) Ground, Power and Wiper Motor Class 2 GMLAN - A/T GMLAN - M/T Fuse Block - Underhood ABS, AMP, BATT2, COOLFAN, ECM/TCM/EASY KEY, HORN/ALT SENSE, HVAC, and MRRTD Fuses BCM Fuses: ECM, HTD SEAT/WPR RELAYS, GM LAN RUN/CRNK, and SDM/AOS AIRBAG, Fuse Block - Underhood ABS/MRRTD and TCM/TRANS Fuses and WIPER RUN/ACC Relay Cranking, 1 of 2 Cranking, 2 of 2 DLC, Ground, Power, and Stop Lamp Signal G104, G106, and G303
Figure 2:	5-Volt Reference Bussing Master Electrical Component List Engine Control Module Description Control Module References Low Reference Bussing DLC, Ground, MIL and Power OBD II Symbol Description Notice

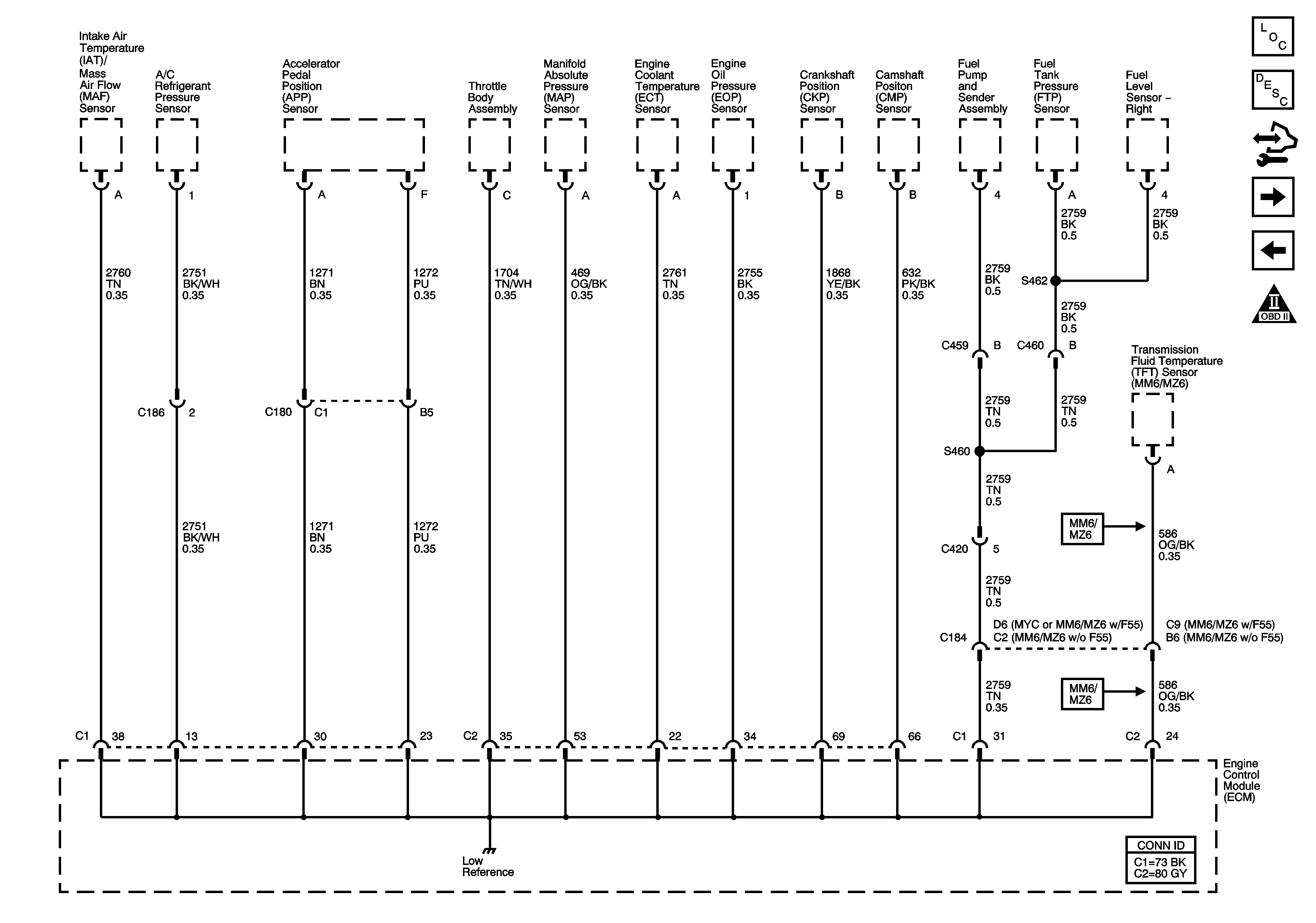

Figure 3:	Low Reference Bussing Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - Pressure, Temperature, IAT/MAF, VSS and Brake Travel 5 Volt Reference Bussing OBD II Symbol Description Notice
Figure 4:	Engine Data Sensors - Pressure, Temperature, IAT/MAF, VSS and Brake Travel Master Electrical Component List Air Intake System Description Control Module References Engine Data Sensors - Oxygen Sensors Low Reference Bussing OBD II Symbol Description Notice Fuse Block - Underhood A/C COMP, EMISSION, EVEN INJ, MAN TRAN SOL, 02 SEN, ODD INJ, and PT INPUT/ETC Fuses, A/C COMP and POWERTRAIN IGN1 Relays Fuse Block - Underhood A/C COMP, EMISSION, EVEN INJ, MAN TRAN SOL, 02 SEN, ODD INJ, and PT INPUT/ETC Fuses, A/C COMP and POWERTRAIN IGN1 Relays Hazard, Stop Lamps, and Turn Signal Outputs (Y07/Y67) Hazard, Stop Lamps, and Turn Signal Outputs (Y87) Gages Manual Transmission Schematics DLC, Ground, Power, and Stop Lamp Signal G104, G106, and G303
Figure 5:	Engine Data Sensors - Oxygen Sensors Master Electrical Component List Knock Sensor (KS) System Description Control Module References Engine Data Sensors - Electronic Throttle Controls Engine Data Sensors - Pressure, Temperature, IAT/MAF, VSS and Brake Travel OBD II Symbol Description Notice Fuse Block - Underhood A/C COMP, EMISSION, EVEN INJ, MAN TRAN SOL, 02 SEN, ODD INJ, and PT INPUT/ETC Fuses, A/C COMP and POWERTRAIN IGN1 Relays
Figure 6:	Engine Data Sensors - Electronic Throttle Controls Master Electrical Component List Throttle Actuator Control (TAC) System Description Control Module References Ignition Controls System - Bank 1 Engine Data Sensors - Oxygen Sensors OBD II Symbol Description Notice
Figure 7:	Ignition Controls System - Bank 1 Master Electrical Component List Electronic Ignition (EI) System Description Control Module References Ignition Controls System - Bank 2 Engine Data Sensors - Electronic Throttle Controls OBD II Symbol Description Notice Fuse Block - Underhood A/C COMP, EMISSION, EVEN INJ, MAN TRAN SOL, 02 SEN, ODD INJ, and PT INPUT/ETC Fuses, A/C COMP and POWERTRAIN IGN1 Relays G105 and G107
Figure 8:	Ignition Controls System - Bank 2 Master Electrical Component List Electronic Ignition (EI) System Description Control Module References Ignition Controls - Sensors Ignition Controls System - Bank 1 OBD II Symbol Description Notice Fuse Block - Underhood A/C COMP, EMISSION, EVEN INJ, MAN TRAN SOL, 02 SEN, ODD INJ, and PT INPUT/ETC Fuses, A/C COMP and POWERTRAIN IGN1 Relays G105 and G107
Figure 9:	Ignition Controls - Sensors Master Electrical Component List Knock Sensor (KS) System Description Control Module References Fuel Controls - Fuel Pump Controls and Injectors Ignition Controls System - Bank 2 OBD II Symbol Description Notice Engine Controls Schematic Icons
Figure 10:	Fuel Controls - Fuel Pump Controls and Injectors Master Electrical Component List Fuel System Description Control Module References Fuel Controls - EVAP Controls Ignition Controls - Sensors OBD II Symbol Description Notice Fuse Block - Underhood A/C COMP, EMISSION, EVEN INJ, MAN TRAN SOL, 02 SEN, ODD INJ, and PT INPUT/ETC Fuses, A/C COMP and POWERTRAIN IGN1 Relays Fuse Block - Underhood Bussing G102 Gages G102 G302, G401, and G402
Figure 11:	Fuel Controls - EVAP Controls Master Electrical Component List Fuel System Description Control Module References Controlled/Monitored Subsystem References Fuel Controls - Fuel Pump Controls and Injectors OBD II Symbol Description Notice DLC, Ground, MIL and Power Fuse Block - Underhood ABS, AMP, BATT2, COOLFAN, ECM/TCM/EASY KEY, HORN/ALT SENSE, HVAC, and MRRTD Fuses Fuse Block - Underhood A/C COMP, EMISSION, EVEN INJ, MAN TRAN SOL, 02 SEN, ODD INJ, and PT INPUT/ETC Fuses, A/C COMP and POWERTRAIN IGN1 Relays Fuse Block - Underhood ABS, AMP, BATT2, COOLFAN, ECM/TCM/EASY KEY, HORN/ALT SENSE, HVAC, and MRRTD Fuses Low Reference Bussing
Figure 12:	Controlled/Monitored Subsystem References Master Electrical Component List Engine Control Module Description Control Module References Fuel Controls - EVAP Controls Engine Controls Schematic Icons Cranking, 2 of 2 Cranking, 1 of 2 Compressor Controls Engine Cooling Schematics Messages Gages
