Driver or Passenger Seat Back Cushion Finish Panel Replacement for Chevrolet Malibu 2004

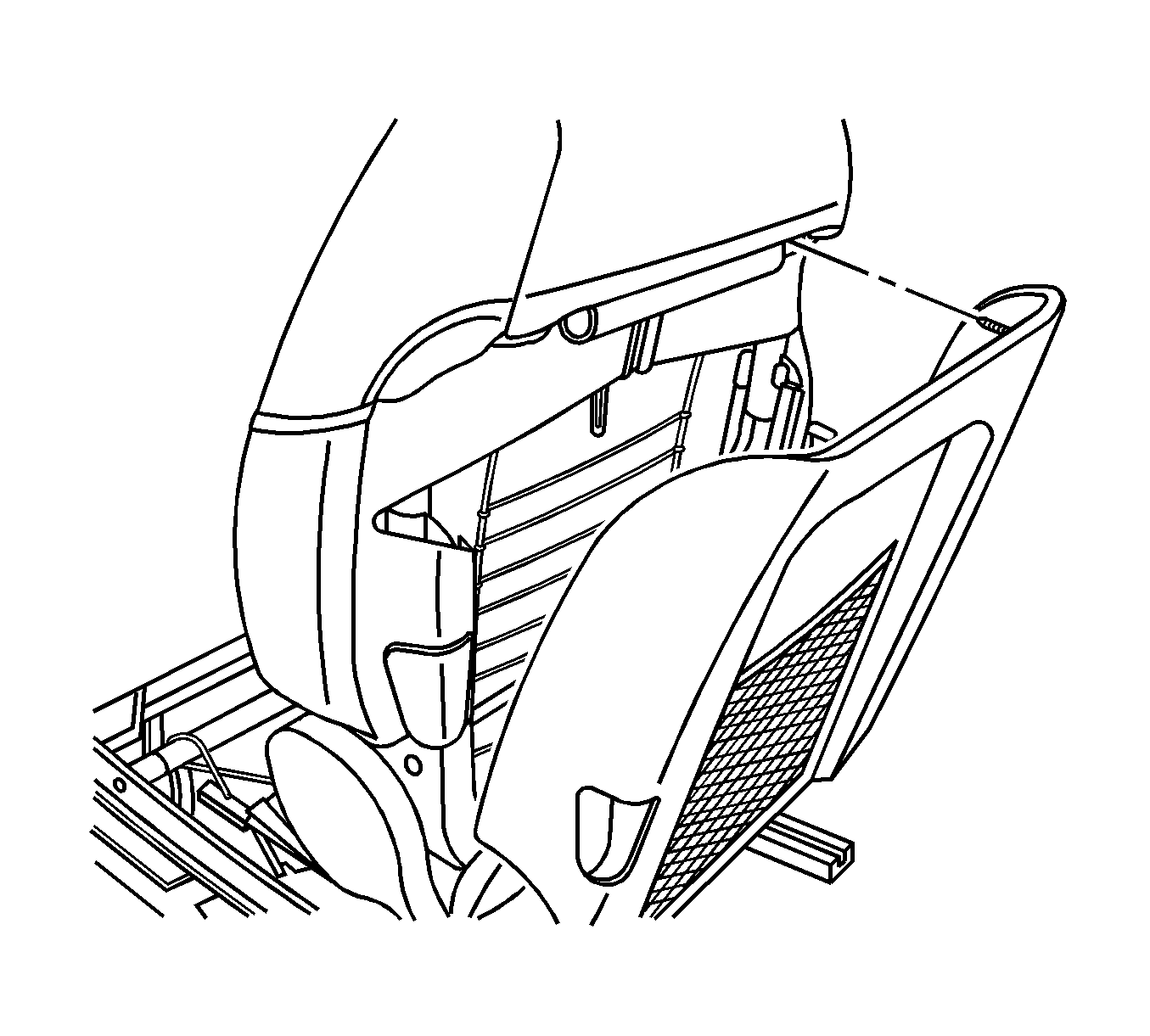

Driver or Passenger Seat Back Cushion Finish Panel Replacement Passenger Side

1. Starting at the top of the seat back panel and working all the way around, pull the panel from the seat back frame.
2. Remove the seat back panel from the seat back frame.

1. Install the seat back panel to the seat back frame.
2. Starting at the top of the seat back panel and working all the way around, push the panel onto the frame.

Driver or Passenger Seat Back Cushion Finish Panel Replacement Driver Side

1. Remove the lumber knob, if equipped. Refer to Lumbar Support Knob Replacement .



2. Starting at the top of the seat back panel, remove the push-in retainers by pulling the panel from the seat back frame.
3. Remove the seat back panel from the seat back frame by pulling straight up.

1. Install the seat back panel to the seat back frame.
2. Push at the top of the seat back panel to install the push-in retainers to the frame.
3. Install the lumber knob. Refer to Lumbar Support Knob Replacement .
